Manufacture	Other
Item No	IOC16T
Article number	200-565-000-013
Series	Vibration
Origin	United States (US)
Dimension	85*140*120(mm)
Weight	0.6kg
Customs Tariff Number	85389091
Type	Input-Output Card

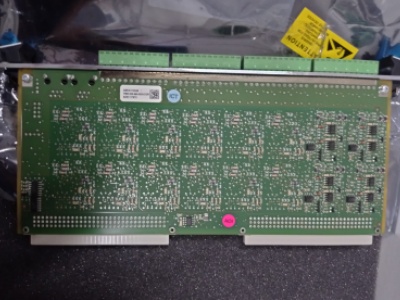

IOC16T 200-565-000-013 input-output card Extended condition monitoring modules The XMx16 + XIO16T extended condition monitoring modules are latest-generation condition monitoring modules, which together with the VibroSight® software, offer several key advantages over the CMC16/IOC16T card pair and VM600 CMS software that they replace: state-of-the-art technology, stronger system capabilities (increased amplitude and spectral resolution, more buffer memory for pre-event and post-event data, more powerful module-level processing, faster data acquisition and storage rates), improved software interface with powerful high-resolution plots, integrated data management, and simplified network access with open interfaces. An XMx16 + XIO16T module provides all of the interfacing and signal processing functions required of an intelligent data acquisition system and is a central element in VM600Mk2/VM600 rack-based machinery monitoring solutions. The modules are designed for operation with the VibroSight® software: they acquire and analyse vibration data before communicating the results directly to a host computer running VibroSight® using the on-board Ethernet controller. The XMx16 processing module is installed in the front of the rack and the XIO16T module is installed in the rear. Either a VM600Mk2/VM600 standard rack (ABE04x) or slimline rack (ABE056) can be used and each module connects directly to the rack’s backplane using two connectors. The XMx16 + XIO16T is fully software configurable and can be programmed to capture data based on time (for example, continuously at scheduled intervals), events, machine operating conditions or other system variables. Individual measurement channel parameters including frequency bandwidth, spectral resolution, windowing function and averaging can also be configured to meet the needs of specific applications. As part of a VM600Mk2/VM600 system, XMx16 + XIO16T extended condition monitoring modules are ideal for the high-performance condition monitoring of critical assets such as gas, steam or hydro turbines and other high-value rotating machines in a wide range of industrial applications• Machinery vibration monitoring and analysis, including rotor dynamics • Rolling-element bearing analysis • Hydro air-gap and magnetic-flux monitoring and analysis • Combustion monitoring and analysis, including combustion dynamics and dynamic pressure pulsation
