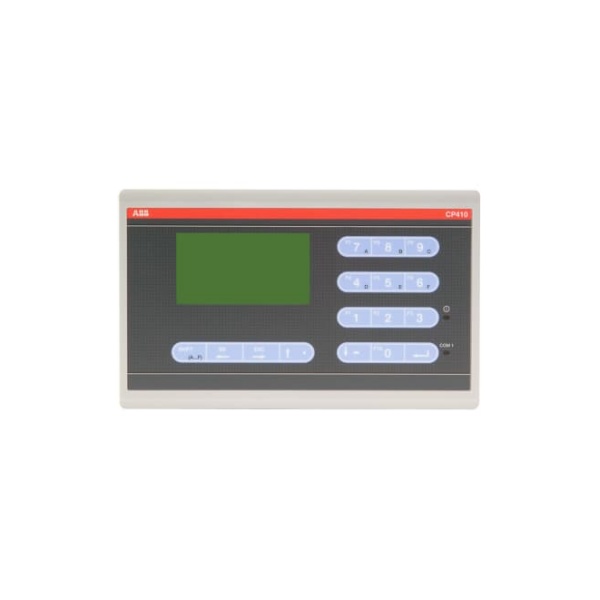

| Manufacture | ABB |
| Item No | CP410M |
| Article number | 1SBP260181R1001 |
| Series | HMI |
| Origin | Sweden |
| Dimension | 73*233*212(mm) |
| Weight | 3.1kg |
| Customs Tariff Number | 85389091 |
| Type | Control Panel |
Power source The operator terminal is equipped with a 24 V DC input. Supply power other than 24 V DC ± 15% will severely damage the operator terminal. Thus, check the power supply supporting the DC power regularly. Grounding -Without grounding, the operator terminal may be severely affected by excess noise. Make sure that the grounding is done properly from the power connector at the rear side of the operator terminal. When power is connected, make sure that the wire is grounded. -Use a cable of at least 2 mm2 (AWG 14) to ground the operator terminal.Ground resistance must be less than 100 Ω (class3). Note that the ground cable must not be connected to the same ground point as the power circuit. Installation –Communication cables must be separated from power cables for operational circuits. Only use shielded cables to avoid unpredictable problems. During Use – Emergency stop and other safety functions may not be controlled from the operator terminal. – Do not use too much force or sharp objects when touching the keys, display etc.
