Manufacture	Bently Nevada
Item No	330130-040-01-00
Article number	330130-040-01-00
Series	3300 XL
Origin	United States (US)
Dimension	85*140*120(mm)
Weight	1.2kg
Customs Tariff Number	85389091

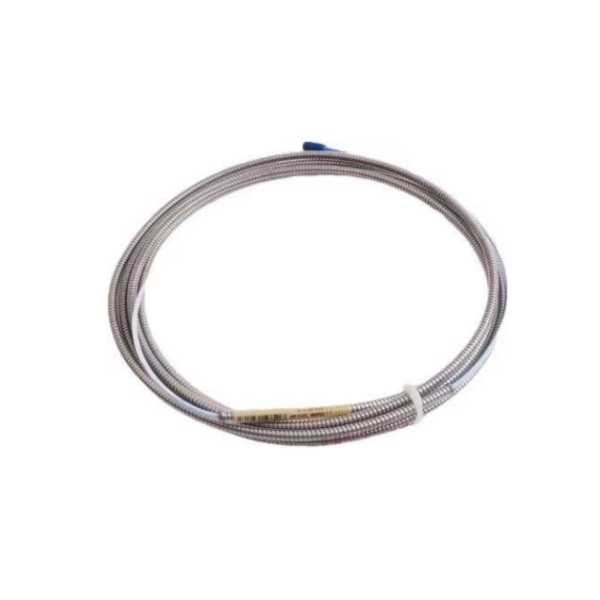

Type	Standard Extension Cable

330130-040-01-00 Bently Nevada 3300 XL Standard Extension Cable Proximity Probe and Extension Cable The 3300 XL probe and extension cables also reflect improvements over previous designs. The patented TipLoc™ molding method provides a more secure connection between the probe tip and the probe body. The probe's cable is also more securely connected, with a patented CableLoc™ design that provides 330 N (75 lbf) of pull strength where the probe cable connects to the probe tip. 3300 XL 8 mm probe and extension cable can also be ordered with the optional FluidLoc® cable option. This option prevents oil and other fluids from leaking out of the machine through the interior of the cable. The 3300 XL probes, extension cables, and Proximitor® sensors feature corrosion-resistant, gold-plated ClickLoc™ connectors. These connectors require only finger-tight torque (the connectors "click" into place), while a specially designed locking mechanism prevents the connectors from coming loose. They do not require any special tools to install or remove. 3300 XL 8 mm Probes and Extension Cables can also be ordered with connector protectors already installed.Connector protectors can also be supplied separately for installation in the field (such as when the cable must be run through restrictive conduit). Connector protectors are recommended for all installations and provide increased environmental protection7.Extended Temperature Range Applications： For applications where the probe lead or extension cable may exceed the 177 °C (350 °F) temperature specification, an extended temperature range (ETR) probe and extension cable can be used. The probe lead and connector of the extended temperature range probe are rated for extended temperatures up to 260 °C (500 °F). The probe tip must remain below 177 °C (350 °F). The extended temperature range extension cable is rated for temperatures up to 260 °C (500 °F). ETR probes and cables are compatible with standard temperature probes and cables. For example, you can use an ETR probe with a 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor sensor. When using any ETR component as part of a system, the accuracy is limited to that of the ETR system.
